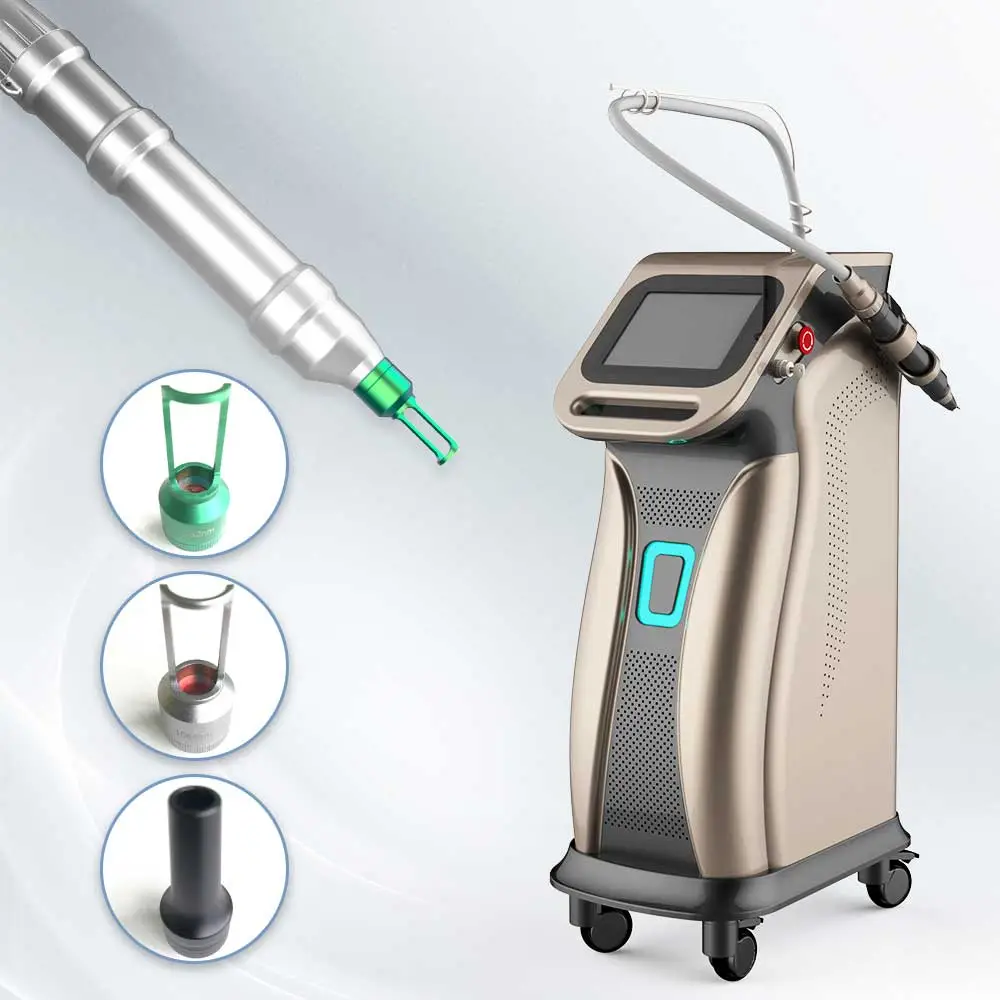

Q Switch Nd Yag Laser Tattoo Removal Machine

Q Switch Nd Yag Laser Tattoo Removal Machine is very effective for the removal of dark tattoos and the safest for skin of color. Using a top-hat beam profile ensures control of homogeneous energy delivery and maximum safety without hot-spots norany risk of side effects or complication for the patient. Also, there are other functions like the following.


Contact us

Q Switch Nd Yag Laser Tattoo Removal Machine Video

Q Switch Nd Yag Laser Tattoo Removal Machine Video
Q Switch Nd Yag Laser Tattoo Removal Machine Video

Q Switch Nd Yag Laser Tattoo Removal Machine Specifications

Tattoo Removal Equipment Prices


LASER TYPE

Nd: YAG

AAACHINE POWER

600W

LASER POWER

300W

LASER OUTPUT SYSTEM

Handle tool output

LASER WAVELENGTH

1064nm & 532nm

TREATMENT HEADS

Focus head 2 (1064nm&532nm) / Carbon peeling head

PULSE WIDTH

532nm: 4ns / l 064nm: 4.5ns

ENERGY

100-2000J / cm2 (1064nm & 532nm)

FREQUENCY

1-10Hz

COOLANT

Distilled Water

SCREEN

10.4 Inch Color Touch Screen

COOLING SYSTEM

Air Cooling & Water Cooling

VOLTAGE

110V±l 0%; 60Hz / 220V±l 0%; 50Hz

MACHINE WEIGHT

40kg

AAACHINE SIZE

400mm*500mm* 1100mm

PACKAGE WEIGHT

60kg

PACKAGE SIZE

690mm*520mm*l 240mm




Q Switch Nd Yag Laser Tattoo Removal Machine Detailed Description

Tattoo Removal with Tattoo Machine


Q Switch Nd Yag Laser Tattoo Removal Machine is very effective for the removal of dark tattoos and the safest for skin of color. Using a top-hat beam profile ensures control of homogeneous energy delivery and maximum safety without hot-spots norany risk of side effects or complication for the patient. Also, there are other functions like the following.

Best Laser Tattoo Removal Machine


Q Switch Nd Yag Laser Tattoo Removal Machine Principle

Therapy of epidermis and dermis pigmentation Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.


Carbon peeling treatment

The 1064nm wavelength laser directly acts on the carbon cream, blasting the toner, and the toner absorbs pore oil and dirt. At the same time, the laser can stimulate the dermis to produce a large amount of collagen, thereby achieving the function of shrinking pores and whitening.


Q Switch Nd Yag Laser Tattoo Removal Machine Advantage

Introduction to Handles

532nm: red, orange, brown, stronger exfoliation

1064nm Head:

1064nm: For black, blue, deeper penetration tattoos removal

Carbon peeling head


Best Tattoo Removal Equipment


System Advantages

1. Light Weight

Small-sized and lightweight system is easy for transportation, saving freight costs.

2. High Performance

The long service life system has a short pulse width (4ns) and high power (940mj)

3. Nice Handle Design

laser handle design is costeffective.

4. Strong Cooling System

Strong water cooling system makes continuous working of machine possible.

5. Easy For Use

Contollable spot size makes machine easy foroperating.

6. Color Touch Screen

Operation and parameter adjustment can be done on 10. 4 inch color touch screen.

7. Precise

Laser generator is de-signed in handle to pre-vent polarization.


Best Tattoo Removal Laser Equipment


Q Switch Nd Yag Laser Tattoo Removal Machine Application

Functions

1. Skin Rejuvenation,Skin Whitening & Resurfacing.

2. Freckles,Black Spots,Age Pigment, Cafe au Lait Spots & Sunburn Removal.

3. Epidermis & Dermis Pigmentation Removal.

4. Body Tattoo, Eyebrow Tattoo & Lips Line Removal.

5. Nevus of Ota & Birthmark Removal.


Tattoo Removal Equipment Prices of China


Treatment Procedure

Tattoo Removal with Tattoo Machine of Company


Q Switch Nd Yag Laser Tattoo Removal Machine Effect

Best Laser Tattoo Removal Machine of Manufactuers

NOTES for Treatment

(1) Applying a medical facial mask for one week after treatment is suggested.

(2) It is recommended to apply skin-care products to prevent skin pigmenta-tion after treatment.

(3) Avoid sunlight to prevent pigmentation after treatment. Physical sun-screen (such as wearing a mask or taking sun umbrella while going out)shall be conducted after treatment.

(4) The treatment interval is about one month. Recommended treatment times are shown in parameter table. Doctor shall judge whether more treat-ment is needed according to patients' skin conditions.

(5) Avoid spicy foods or seafood within one week after treatment.
