SANHE Laser's DPL Skin Rejuvenation Machine features five major technological advancements for efficient and precise treatment. Compared to IPL technology, DPL is superior for handling finer hair and offers adjustable parameter settings for various skin conditions. The versatile applications of this DPL machine include hair removal, skin rejuvenation, skin tightening, acne and pigment removal, and vascular lesion therapy, delivering outstanding results with enhanced comfort and efficacy.
Specification of SHR-950S | |
Wave Length | PR: 550-650nm VR: 500-600nm |
Optional: (HR: 650-950nm SR: 560-950nm AR 420-520nm ) | |
Fluence | 10-50J / cm2 SHR: 1-10J / cm2 |
Frequency | 1-10HZ |
RF power | 1-30W |
Input Power | 4000W |
Power Source | Pure Sapphire |
Lamp | German Imported lamp |
Spot Size | 10*40mm for(SR, VR, AR, PR) 15*50mm for HR |
Contact cooling temperature | Max -10℃ |
Cooling System | Built in water cooling + semi conductor cooling + air cooling |
LCD Screen | 10.4 inch true color touch screen control |
package size | 82*59*122cm |
Weight | 99kg |

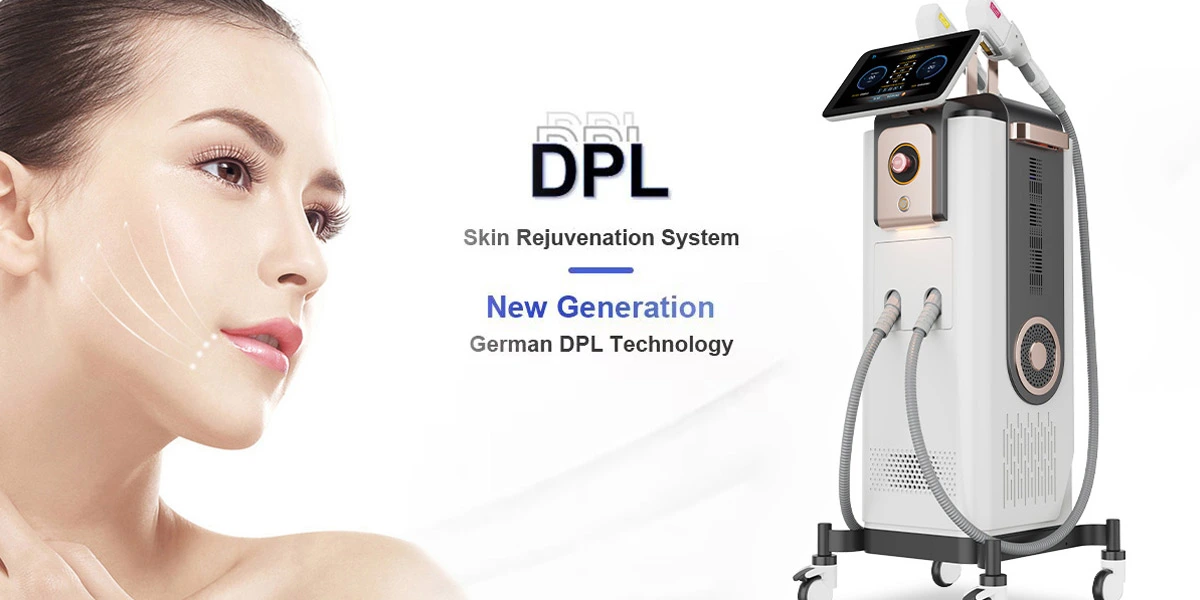

The DPL (Dye Pulsed Light) skin rejuvenation machine employs advanced photo skin rejuvenation technology, setting it apart from traditional methods like IPL. This innovative technology utilizes 100nm pulsed light, which targets the absorption peaks of melanin, oxygen, and hemoglobin. By concentrating therapeutic energy precisely, the DPL machine effectively and efficiently addresses facial freckles and telangiectasia (red face) issues. This precision of the DPL machine ensures quicker and more effective treatments, providing superior results in skin rejuvenation.
The DPL Skin Rejuvenation Machine boasts five major technological innovations and reforms:
100nm Delicate Pulse Light Technology: Delivers quick and efficient treatments.
German-Imported Xenon Lamp: Ensures high-quality and reliable light output.
OPT Power Supply: Provides uniform and stable energy delivery.
Multiple Wavelengths: Suitable for all skin types with five handle options: HR, SR, PR, VR, AR.
In-Motion Technology: Features a fast mode with 10Hz high frequency for rapid treatments.
DPL (Dye Pulsed Light):
Handles New Fine Hair: Effectively targets and treats fine hair.
Efficient Energy Delivery: Energy reaches the dermis without significant attenuation, with minimal energy remaining in the epidermis.
IPL (Intense Pulsed Light):
Handles Coarse Hair: Primarily effective for treating coarse hair.
Shallow Energy Concentration: Energy is concentrated in the shallow layers, resulting in a lower thermal effect on the target tissue.
Multiple wavelengths available for use on all skins Auto-identified 5 hanldes for your choice
To achieve optimal results with the DPL Facial Machine, follow these parameter setting principles:
Thick, Dark Yellow, and Rough Skin: Increase the pulse width and simultaneously increase the energy density.
Dark Skin with Thick Epidermis and Pigmentation: Increase the pulse interval.
Darker Skin with Thin Epidermis and Sensitivity: Set a lower energy density.
Areas with Less Subcutaneous Tissue: Reduce the energy density appropriately.
Increasing Number of Treatments: Gradually increase the energy density.
Minimal Reaction and High Tolerance: Increase the energy density.
1. Hair Removal
2. Skin Rejuvenation
3. Skin Tightening
4. Acne Removal
5. Pigment Removal
6. Vascular Lesion
Before and After:
Preparation for Long and Black Hair:
Ask the customer to shave three days in advance, or trim the hair to about one millimeter on the day of treatment.
The black stubble will absorb light and conduct heat to the hair root.
For white and tender fluff, no shaving is needed; some hairs will fall off automatically after a week.
Energy Settings: Increase the energy as much as possible until the customer feels a strong needling sensation that is still acceptable.
Treatment Passes:
Perform six passes over the entire area.
For coarse hair, perform 4-6 passes.
For fine hair, perform 6-7 passes.
Treatment Interval:
Adhere to the treatment schedule based on the interval cycle.
The hair follicle recovery period is 21 days, and the hair growth cycle is about 28 days.
Schedule treatments every 21 to 28 days, and try not to exceed 30 days between sessions.
