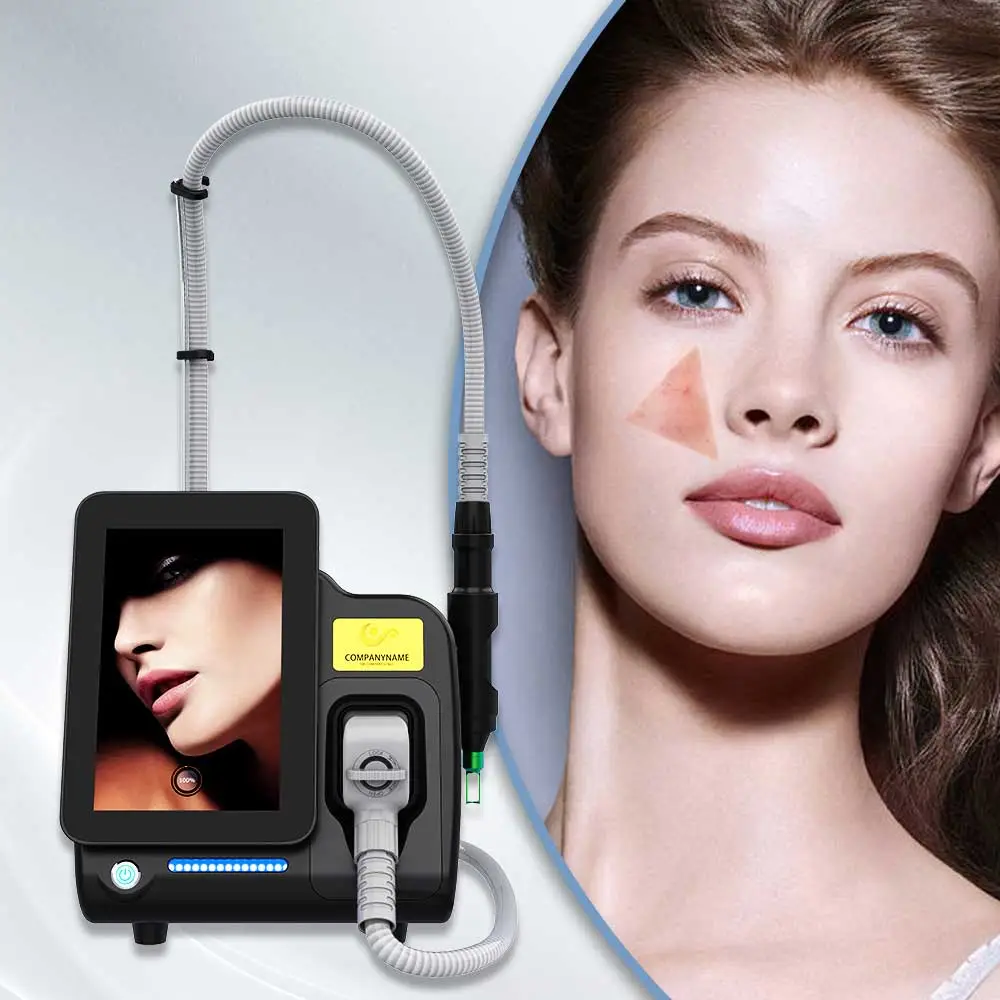

Portable Q-Switched Nd Yag Laser Device

ND YAG Laser is proven to be the most effective way to remove tattoos, which emits light in a particular way in short and sharp pulses to break down the tattoo pigments. They are absorbed by the pigments within the skin. This light energy is measured in nanometres (nm) and is emitted at wavelength of 532nm,1064nm.


Contact us

Portable Q-Switched Nd Yag Laser Device Video

Portable Q-Switched Nd Yag Laser Device Video
Portable Q-Switched Nd Yag Laser Device Video

Portable Q-Switched Nd Yag Laser Device Specifications

Laser type

ND: yag laser

Input power

600W

Laser power

300W

Output system

Handle tool output

Laser wavelength

1064nm & 532nm

Treatment head

Focus head 2 (1064nm&532nm) / Carbon peeling head

Pulse width

532nm: 4ns / 1064nm:4.5ns

Energy

100-2000mj (1064nm&532nm)

Frequency

1-10hz

Coolant

Distilled water

Screen

10.4 inch touch color screen

Cooling system

Air+water cooling

Voltage:

110V±10%, 60Hz / 220V±10%, 50Hz

Machine weight

40kg

Machine size

400mm*500mm*1100mm

Package weight

60kg

Package size

690mm*520mm*1240mm




Portable Q-Switched Nd Yag Laser Device Detailed Description

ND YAG Laser is proven to be the most effective way to remove tattoos, which emits light in a particular way in short and sharp pulses to break down the tattoo pigments. They are absorbed by the pigments within the skin. This light energy is measured in nanometres (nm) and is emitted at wavelength of 532nm, 1064nm.


Pico Machine Tattoo Removal of China


Portable Q-Switched Nd Yag Laser Device Therapy Principle

Therapy of epidermis and dermis pigmentation

Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.


Carbon peeling treatment

The 1064nm wavelength laser directly acts on the carbon cream, blasting the toner, and the toner absorbs pore oil and dirt. At the same time, the laser can stimulate the dermis to produce a large amount of collagen, thereby achieving the function of shrinking pores and whitening.


Therapy principle

Laser Tattoo Removal Machine for Sale of Company


Interface

Laser Tattoo Removal Machine Price of Manufactuers


Portable Q-Switched Nd Yag Laser Device Advantage

System Advantages

Light Weight

Small size and light weight, easy to transport, saving freight costs.


High Performance

Short pulse width(4ns)

High power(940mj)

Long lifespan


Handle Design

Cost-effective laser handle design


Easy To Use

Controllable spot size, easy to operate.


Good Cooling

High power built in water cooling system make the machine can be continuely use.


Color Display

Operation and parameter adjustment with 10.4 inch color TFT touch screen.


Precise

The laser generator is located at the handle position, which is not prone to polarization.


Laser Tattoo Removal Equipment Cost of Suppliers


Portable Q-Switched Nd Yag Laser Device Application

Introduction To Machine Handle

1. 532nm: Red, orange, brown, stronger exfoliation

2. 1064nm: Nlack, blue, deeper penetration Carbon peeling head.

3. Carbon Peeling Head


Laser Machine Tattoo Removal of China


Treatment Range

Skin rejuvenation, skin whitening and resurfacing.

Freckles, Black spot, Age spots, Coffee spots and sun-burn spots.

Pigment of epidermis and derma layer.

Body tattoo, eyebrow tattooand lips line.

Nevus of Ota and birthmark.


Laser Machine Tattoo of Company

Pico Machine Tattoo Removal of Manufactuers


Portable Q-Switched Nd Yag Laser Device Effect

Laser Tattoo Removal Machine for Sale of Suppliers

NOTES for Treatment

(1) Applying a medical facial mask for one week after treatment is suggested.

(2) It is recommended to apply skin-care products to prevent skin pigmenta-tion after treatment.

(3) Avoid sunlight to prevent pigmentation after treatment. Physical sun-screen (such as wearing a mask or taking sun umbrella while going out)shall be conducted after treatment.

(4) The treatment interval is about one month. Recommended treatment times are shown in parameter table. Doctor shall judge whether more treat-ment is needed according to patients' skin conditions.

(5) Avoid spicy foods or seafood within one week after treatment.
